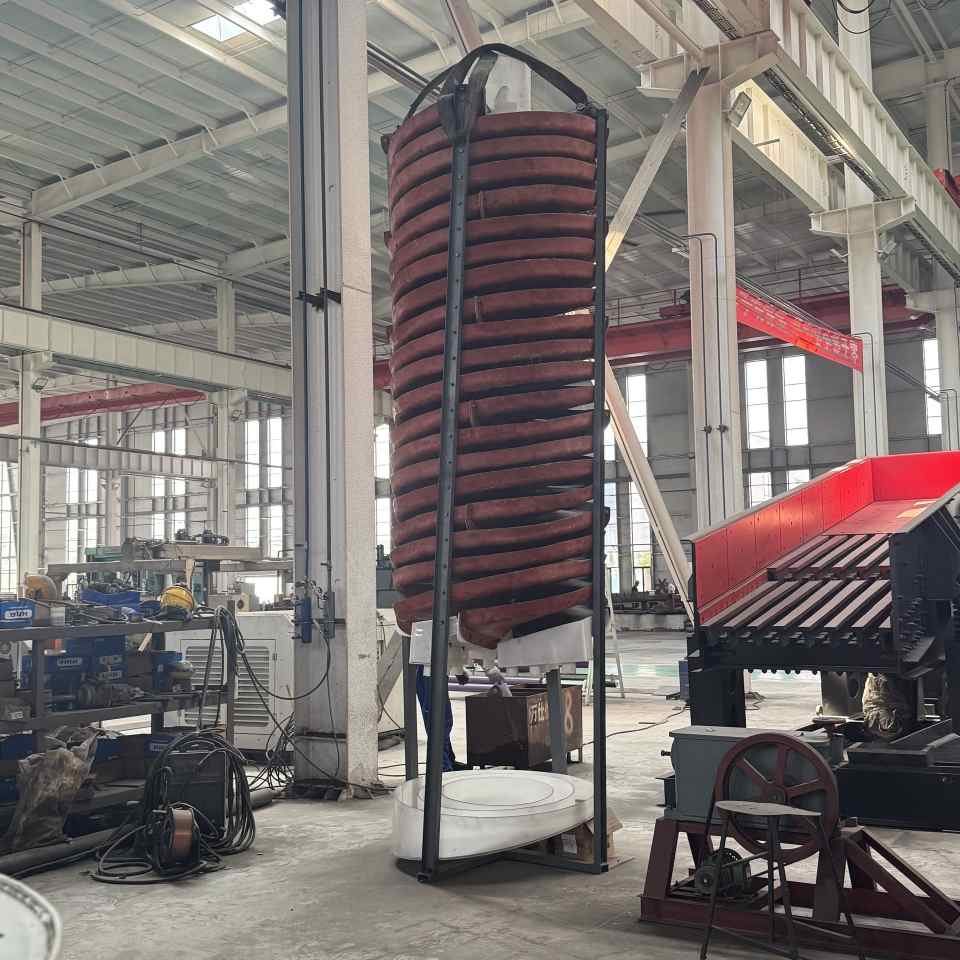

Spiral Chute: FRP Spiral Concentrator for Fine Placer Gold Separation

Name: الصفيحة الحلزونية
Brand: آلات التحسين
SKU: 364
Availability: InStock
Rating: 4.8 (12 reviews)

Spiral chute, also known as spiral concentrator, is a high‑efficiency gravity separation machine. It adopts FRP (fiberglass reinforced plastic) main body with wear‑resistant PU lining, widely applied to recover fine gold, zircon, chromite and other heavy minerals from placer ore.

Different from flat sluice box which mainly catches coarse gold, spiral chute performs outstanding performance on fine‑particle gold recovery. It handles ore pulp by gravity flow. Minerals with different specific gravity will be separated while pulp flows down along the spiral groove. Heavy valuable minerals sink to the inner layer, and light gangue flows outward for discharge.

Main Advantages

No power consumption for separation process, only need pulp feeding pressure. Low operation cost.
FRP body, anti‑corrosion, long service life, easy to install and maintain.
Stable separation index, good effect for 0.02‑0.8 mm fine mineral particles.
Multiple models available, suit for small‑scale mine and medium mineral processing plant.

Technical Specifications

Model	5LL‑900	5LL‑1200	5LL‑1500
Spiral Diameter	900 mm	1200 mm	1500 mm
Pitch	540 mm	720 mm	900 mm
Number of Spirals	5	5	5
Feeding Size	0.02‑0.4 mm	0.02‑0.6 mm	0.03‑0.8 mm
القدرة	0.6‑1.5 t/h	1‑2.5 t/h	2‑4 t/h
Feed Concentration	20‑40%	20‑40%	20‑40%
Overall Height	2450 mm	3100 mm	3750 mm
Weight	260 kg	480 kg	720 kg
Material	FRP+PU wear‑resistant lining	FRP+PU wear‑resistant lining	FRP+PU wear‑resistant lining

Application Scenarios

Fine placer gold ore separation
Zircon, monazite, chromite heavy mineral sorting
Tailings re‑processing to recycle residual fine gold
Cooperate with shaking table, trommel screen and sluice box to build complete gravity separation plant

الأسئلة الشائعة

Q: What is the difference between spiral chute and sluice box? A: Sluice box works better for coarse gold particles. Spiral chute targets fine‑size gold which is easy to lose in normal sluice. They can work together to improve total gold recovery rate.

Q: Do I need extra power for spiral chute? A: The separation itself does not consume power. You only need water pump to deliver ore pulp.

Q: How to choose suitable model? A: Please offer your feeding particle size and required hourly capacity, we will recommend proper spiral chute for your mining project.
