6-S Gold Shaking Table | High Precision Fine Gold Recovery Equipment
نظرة عامة على المنتج

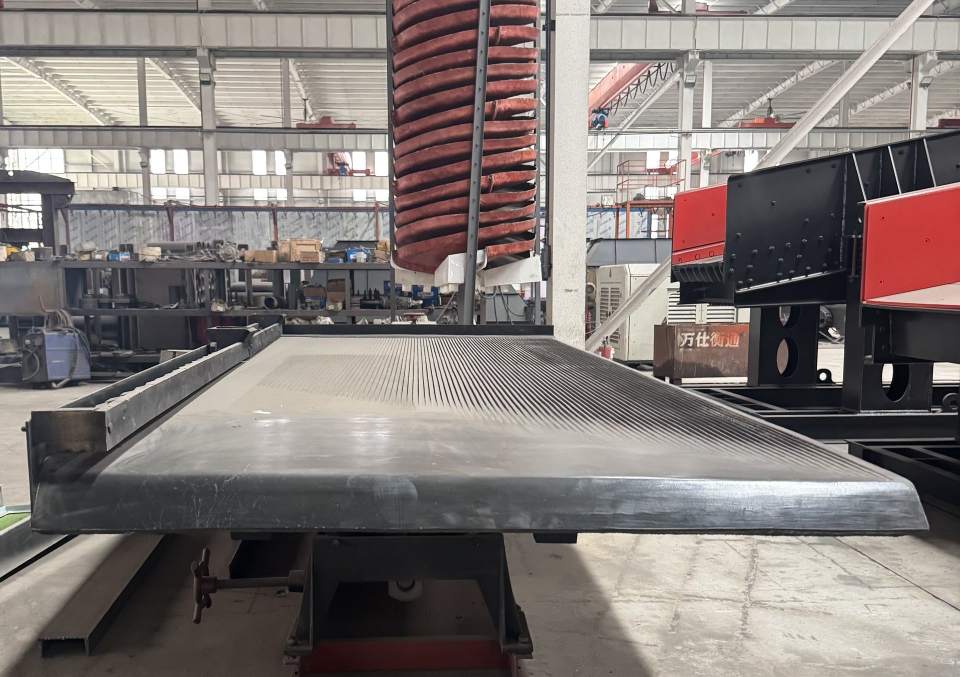

The 6-S shaking table is the most classic and widely used gravity separation equipment in mineral processing industry. It is specially designed for recovering fine gold, micro gold and heavy minerals from ore slurry. With reliable mechanical structure, adjustable stroke and frequency, our gold shaking table achieves high separation precision and ultra-high gold recovery rate, which is perfectly suitable for alluvial gold, rock gold, tin, tungsten, coltan and other mineral beneficiation projects.
Different from other separation machines, the shaking table can output three kinds of products at one time: high-grade concentrate, middling ore and tailings, which greatly improves the utilization rate of mineral resources and creates stable profits for mining investors.
Working Principle
Relying on the combined force of mechanical reciprocating motion and water flow washing, the mineral particles with different specific gravity are stratified on the fiberglass deck. Heavy minerals such as gold sink to the bottom of the deck and move forward with the table stroke, while light gangue minerals are washed away by water flow. Finally, pure gold concentrate and qualified minerals are separated efficiently.
Core Advantages
- High Fine Gold Recovery: Effectively recover micro fine gold particles above 0.04mm, solve the problem of fine gold loss.
- Anti-corrosion Fiberglass Deck: Wear-resistant, long service life, no deformation, low maintenance cost.
- Adjustable Working Parameters: Stroke, frequency, water flow and slope can be adjusted freely for different ore conditions.
- Clear Separation Effect: Concentrate, middling and tailings are discharged separately with high purity.
- Low Energy Consumption: Only 1.1KW motor power, energy-saving and environmentally friendly.
- Wide Application: Fit for rock gold, alluvial gold, tin ore, tungsten ore, manganese ore, coltan ore processing.
Technical Parameters (Standard 6-S Shaking Table)
Item | Parameter |
Overall Dimension | 5630×1850×900 mm |
Deck Size | 4450×1855×1546 mm |
Dressing Area | 7.6 ㎡ |
Motor Power | 1.1 KW |
Machine Weight | About 650 KG |
Three Types of Deck Parameter Comparison
Parameter | Coarse Sand Deck | Fine Sand Deck | Slime Deck |
Max Feeding Size | ≤2mm | ≤0.5mm | ≤0.15mm |
Processing Capacity | 1.0–1.8 t/h | 0.5–1.0 t/h | 0.3–0.5 t/h |
Stroke | 16–22 mm | 11–16 mm | 8–16 mm |
Stroke Frequency | 240–290 r/min | 300–320 r/min | 330–360 r/min |
Water Consumption | 0.7–1.0 t/h | 0.4–0.7 t/h | 0.2–0.5 t/h |
Cross Slope | 2.5°–4.5° | 1.5°–3.5° | 1°–2° |
Feed Density | 25–30% | 20–25% | 15–20% |
Application Scope
This 6S shaking table is widely used in mineral processing for rock gold, alluvial gold, tin ore, tungsten ore, tantalum niobium ore, manganese ore, chrome ore and other rare metal minerals. It can be used independently or combined with centrifugal concentrator, jig machine, sluice box to form a complete gold processing production line, greatly improving overall gold recovery efficiency.
Package & Service
- Standard export wooden box or container packaging
- Complete pre-sale parameter matching and mine scheme design
- Online installation guidance and after-sales technical support
- Long-term spare parts supply
