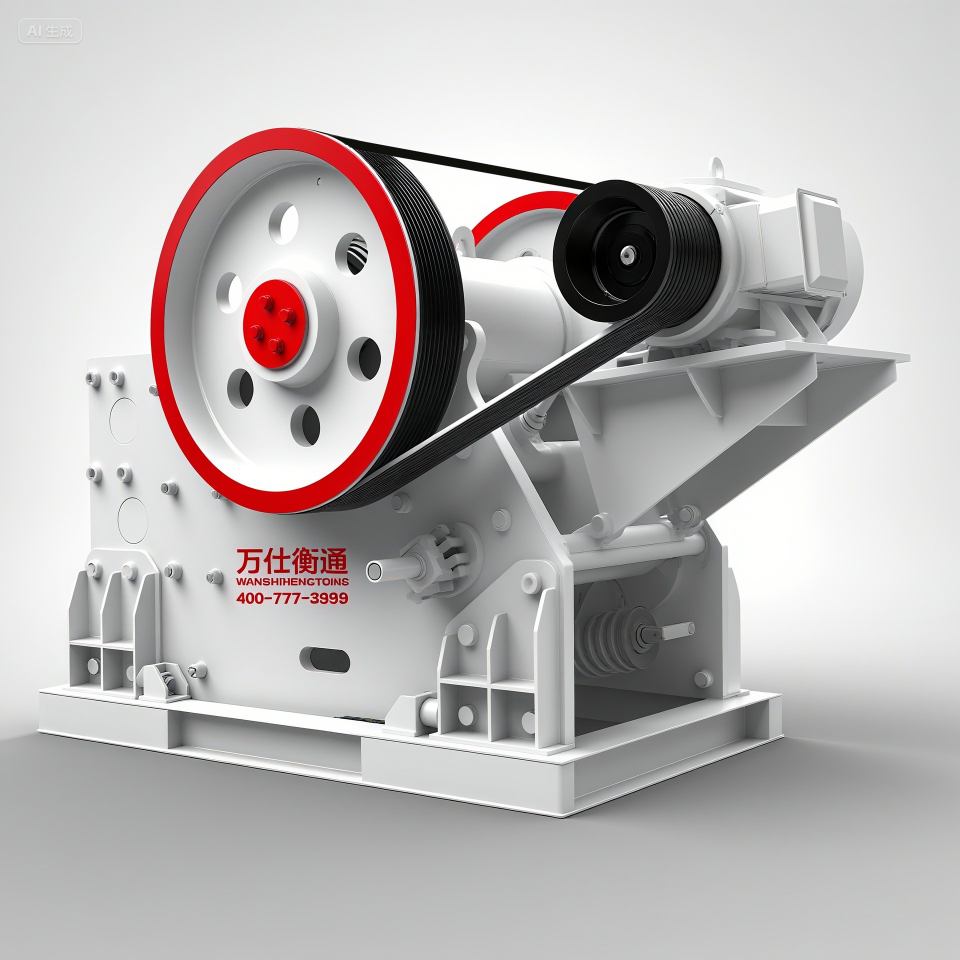

Jaw Crusher

1. Product Overview

Jaw crusher serves as core primary crushing equipment widely adopted in mining, quarry and aggregate processing industries. It crushes hard and medium-hard ores and stones including granite, limestone, basalt, iron ore, gold ore and construction waste. The machine relies on extrusion force between movable jaw plate and fixed jaw plate to break raw materials into uniform finished particle size. Our jaw crusher features robust integrated frame, large crushing ratio, high hourly output, stable continuous operation and low daily maintenance cost, which is ideal primary crushing equipment for complete stone production lines and mineral processing plants.

2. Product Features & Advantages

• Heavy-duty thickened frame: Integral cast steel structure, strong bearing capacity, anti-deformation for long-time heavy load work.
• High manganese steel wear parts: Jaw plates with excellent wear resistance, greatly extend service life and reduce replacement frequency.
• Optimized crushing cavity: Larger feeding opening, higher crushing efficiency, evenly sized finished aggregates.
• Reliable transmission system: Thickened eccentric shaft and stable bearing assembly, low failure rate for 24-hour continuous production.
• Easy daily maintenance: Simple overall structure, convenient lubrication design, fast disassembly and replacement of vulnerable parts.
• Customizable solution: Multiple standard models in stock, support customized capacity and layout matching client on-site conditions.

3. Application Range

Our jaw crusher is widely used in open-pit mines, stone quarries, highway and construction aggregate production, construction waste recycling, metallurgy and chemical raw material processing. It can coordinate with cone crusher, vibrating screen, sand washer and belt conveyor to form a full set of automatic crushing and screening production line.

4. Main Technical Parameters

Model	Max Feed Size(mm)	Discharge Opening(mm)	Capacity(t/h)	Motor Power(kW)
PE250×400	210	20-60	5-20	15
PE400×600	340	40-100	15-60	30
PE600×900	480	65-160	50-120	75
PE750×1060	630	80-180	80-180	110

5. Factory Service Support

• Direct factory sales without middlemen, competitive ex-factory price
• Professional engineers provide one-stop mineral processing production line layout design
• 12-month warranty for core components, long-term spare parts supply
• Global after-sales technical guidance via video call
• Custom machine size and production flow design according to customer raw material and site space
