Project Overview

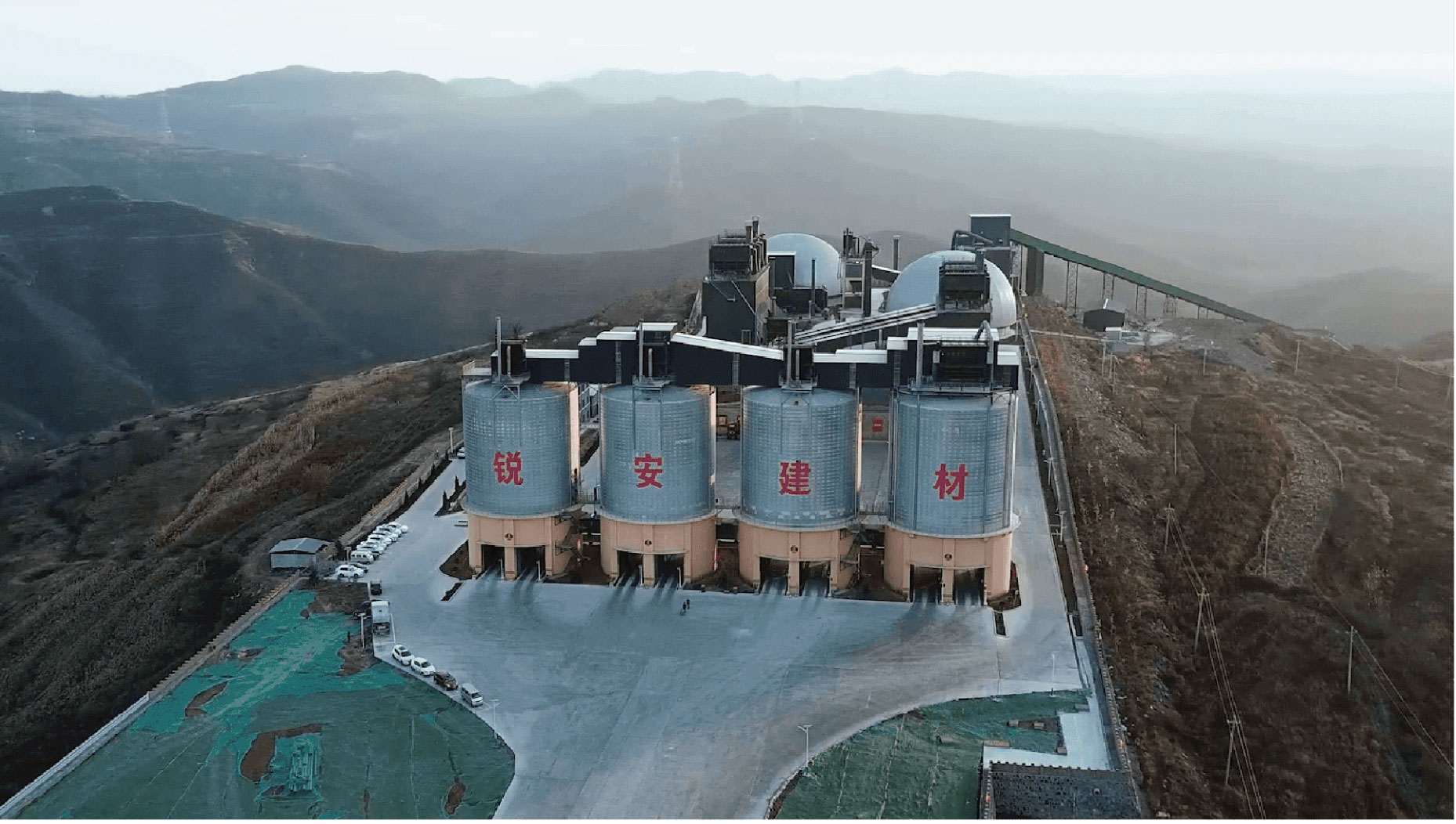

The Jincheng Ruian Building Materials Project in Shanxi Province is a new-generation eco-friendly aggregate production facility. This 2,000 TPH plant combines high-efficiency crushing with comprehensive environmental protection, meeting Shanxi Province strictest green mine standards.
Project Scope
WSHT provided a complete aggregate processing solution with emphasis on dust control, noise reduction, and water conservation. The facility processes local limestone and sandstone into premium construction aggregates.
Process Flow
Primary Crushing: C140 jaw crusher (1400×1060 mm, 250-500 t/h) in fully enclosed crushing chamber with negative-pressure dust extraction (−50 Pa differential).
Secondary Crushing: 2× HPT-300 multi-cylinder cone crushers (100-200 t/h each) with sound-insulated housings (noise < 75 dB at 1m).
Tertiary Sand Making: VSI-8518 sand maker (80-180 t/h) with water spray dust suppression at feed and discharge points.
Water Management: Complete water recycling system: process water → multi-stage settling → filtration → reuse. 98% recycling rate, zero liquid discharge.
Key Equipment
| الآلات | Specification | القدرة |
|---|---|---|
| C140 Jaw Crusher | 1400×1060 mm, 250-500 t/h | Primary (enclosed) |
| 2× HPT-300 Cone Crushers | Multi-cylinder, 100-200 t/h | Secondary |
| VSI-8518 Sand Maker | 80-180 t/h | Tertiary + sand |
| XSD-2610 Sand Washer | Wheel type, 100 t/h | Sand washing |
| Negative-Pressure System | −50 Pa, dust extraction | Dust control |
| Sound Insulation | Crusher housings, < 75 dB | Noise control |
| Water Recycling | Settling + filtration, 98% | Zero discharge |
| SCADA Control | Automated, remote monitoring | Intelligence |
أبرز مشاريع المشروع
- القدرة: 2,000 TPH (600,000 TPA)
- Environmental: Full enclosure, negative-pressure dust
- Noise: Below 75 dB at 1m from crushers
- Water: 98% recycling, zero liquid discharge
- Certification: Shanxi Province Green Mine certified
- Power: 9 MW connected, 6.5 MW average
- Timeline: 10 months EPC delivery
- Location: Jincheng City, Shanxi, China
