Project Overview

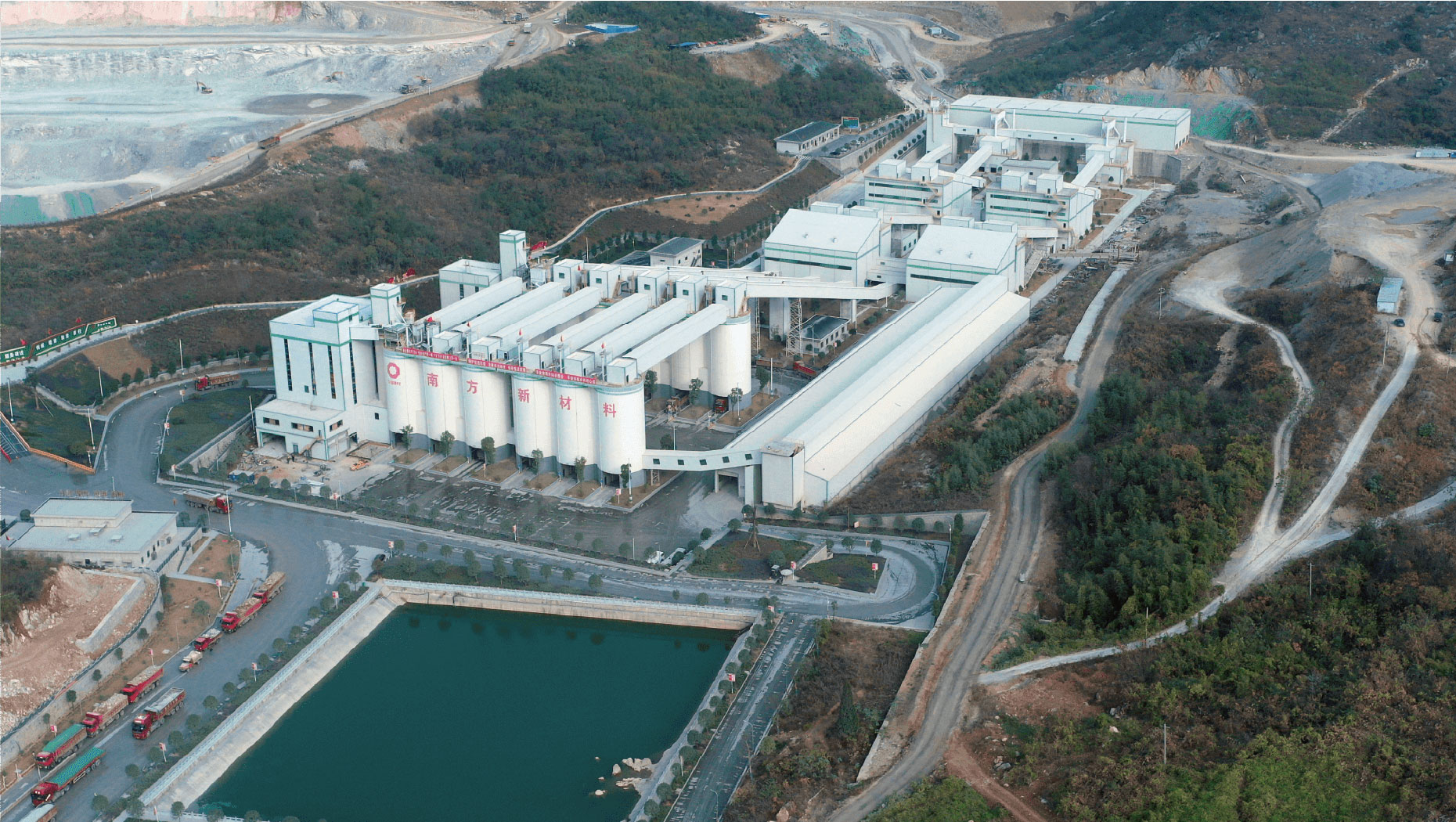

The Hunan China Southern New Materials Project (Plant 2) complements Plant 1 with a dedicated 1,500 TPH facility focused on high-quality manufactured sand production. WSHT designed the plant for optimal sand particle shape and gradation control.
Project Scope
WSHT delivered a sand-optimized crushing and classification system producing manufactured sand meeting GB/T 14684-2011 I类 sand standards. The plant features advanced air classification and washing circuits.
Process Flow
Primary Crushing: A C120 jaw crusher (1200×900 mm, 180-350 t/h) processes ROM granite in enclosed chamber.
Secondary Crushing: HPT-300 cone crusher (100-200 t/h) produces −30 mm feed for sand making circuit.
Sand Making: VSI-8518 sand maker (80-180 t/h) with optimized cascade feed ratio produces cubical sand particles. Air classifier separates fine and coarse fractions.
Classification: Multi-stage hydrocyclone classification produces I类 sand (fineness modulus 2.4-2.8). Dewatering screen produces sand at 7% moisture.
Key Equipment
| الآلات | Specification | القدرة |
|---|---|---|
| C120 Jaw Crusher | 1200×900 mm, 180-350 t/h | Primary |
| HPT-300 Cone Crusher | Multi-cylinder, 100-200 t/h | Secondary |
| VSI-8518 Sand Maker | 80-180 t/h | Sand making |
| Air Classifier | High-efficiency, fines separation | Classification |
| Hydrocyclone Cluster | NX250, 6-unit | Fine classification |
| Dewatering Screen | Linear, 150 t/h | Sand dewatering |
| XSD-2610 Sand Washer | Wheel type, 100 t/h | Sand washing |
| PLC + SCADA | Automated, remote monitoring | Intelligence |
أبرز مشاريع المشروع
- القدرة: 1,500 TPH (450,000 TPA)
- Sand Quality: GB/T 14684-2011 I类, FM 2.4-2.8
- Particle Shape: Cubicity > 95%, flakiness < 10%
- Moisture: 7% final moisture content
- Power: 6 MW connected, 4.2 MW average
- Water: 85% recycling rate
- Timeline: 8 months EPC delivery
- Location: Hunan Province, China
