Project Overview

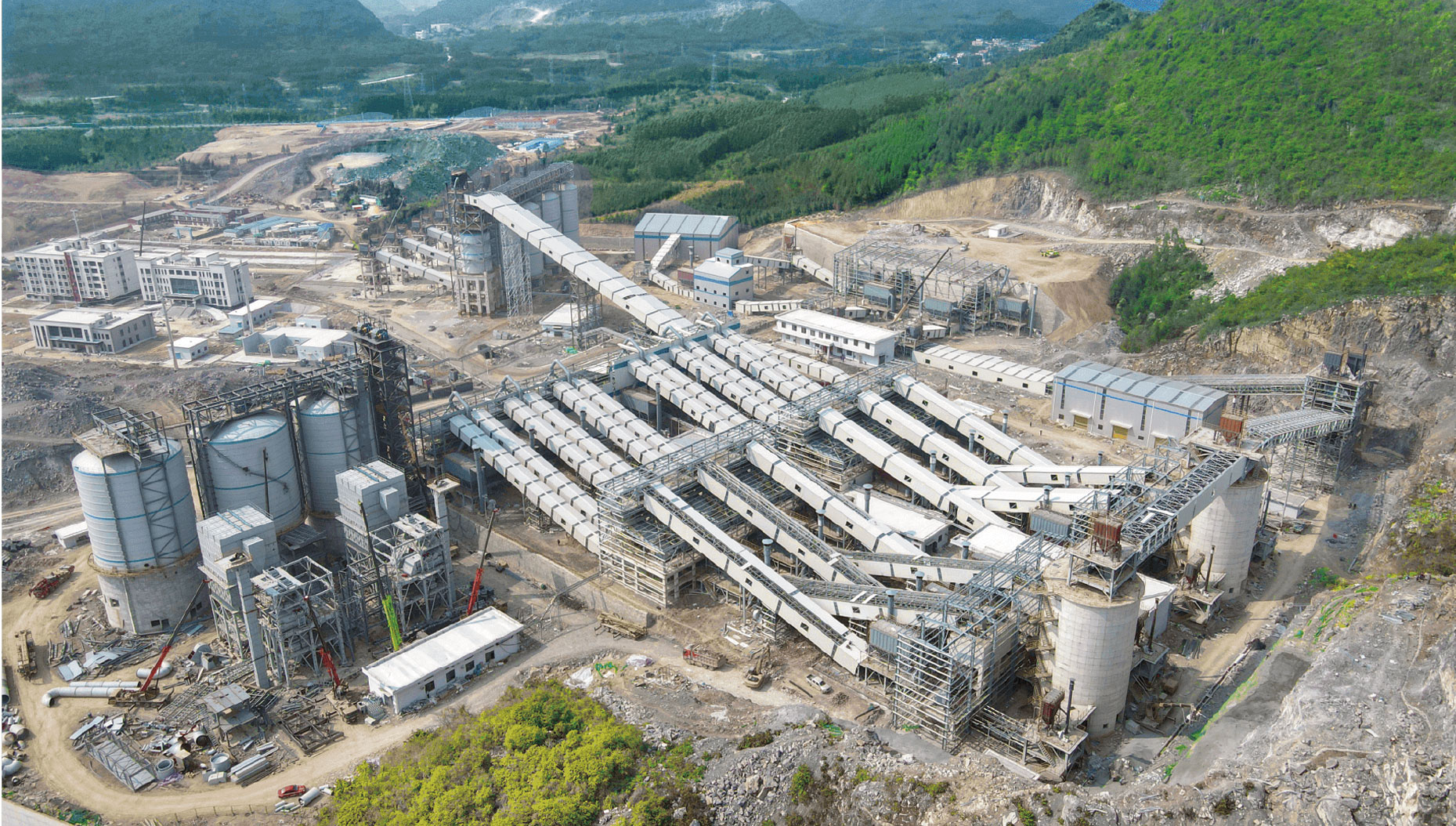

The Daming Mining Green Building Materials Project is a flagship large-scale aggregate production facility in Guangxi Province. This 5,000 TPH plant processes limestone using fully automated crushing and screening circuits with centralized SCADA control.
Project Scope
WSHT delivered a high-capacity crushing and screening solution designed for continuous 24/7 operation. The plant processes medium-hard limestone (UCS 80-100 MPa) into five aggregate sizes plus manufactured sand.
Process Flow
Primary Crushing: A C180 jaw crusher (1800×1400 mm) processes ROM limestone (P80 = 1,200 mm) at 600-1,200 t/h. Hydraulic CSS adjustment optimizes crushing efficiency.
Secondary Crushing: 4× HP800 cone crushers in parallel (300-500 t/h each) reduce product to −50 mm. Automatic load-sharing ensures balanced operation.
Tertiary Crushing: 2× HP500 cone crushers produce −20 mm final product at 250-400 t/h each. Closed-circuit with 2× 4YK-3072 vibrating screens.
Product Handling: 6× radial stackers create 50,000-tonne live stockpiles. Truck loading via automated weigh-bridge system.
Key Equipment
| الآلات | Specification | القدرة |
|---|---|---|
| C180 Jaw Crusher | 1800×1400 mm, 600-1200 t/h | Primary |
| 4× HP800 Cone Crushers | Parallel, 300-500 t/h each | Secondary |
| 2× HP500 Cone Crushers | Short-head, 250-400 t/h | Tertiary |
| 2× 4YK-3072 Screens | 4-deck, high-capacity | Classification |
| 6× Radial Stackers | 1.4 m belt, 1000 t/h | Stockpiling |
| SCADA System | Centralized control, 24/7 | Automation |
| Dust Collection | Bag filter, 99.5% efficiency | Environmental |
| Weigh-Bridge | Automated truck loading | Logistics |
أبرز مشاريع المشروع
- القدرة: 5,000 TPH (1,500,000 TPA)
- Products: 5 aggregate sizes + manufactured sand
- Automation: Fully automated SCADA, 40 operators/shift
- Operation: 24/7, 93% availability
- Power: 22 MW connected, 16 MW average
- Stockpile: 300,000 tonnes total live capacity
- Timeline: 14 months EPC delivery
- Location: Guangxi Province, China
